intoPIX
  • TitaniumShow

    ​Low Latency Screen Casting Software ​with SMPTE 2110, JPEG XS, and IPMX

    Any Screen Sizes | HD to 4K | Native and Virtual Screens

    얼리 액세스 평가판 신청하기
    Download the Titanium App Brochure
TitaniumShow
KEY BENEFITS
SYSTEM REQUIREMENTS
USE CASES
Early Access Program

TitaniumShow

Easy Screen Casting over SMPTE ST 2110 and IPMX

TitaniumShow transforms laptops and workstations into powerful SMPTE ST 2110 JPEG XS IP-based sources, supporting display resolutions of all sizes. Whether streaming from your native desktop screens or creating and sharing virtual screens of any size, TitaniumShow offers a flexible solution for sending content to SMPTE ST 2110 or IPMX local area networks.


With TitaniumShow, you can cast multiple screens over the integrated GigE interface, typically using 1G or 2.5GbE, readily available on most workstations. It captures and streams live SMPTE ST 2110 content from any computer screen — whether native or virtual — enabling your desktop to act as a SMPTE ST 2110 source with multiple video essences.


TitaniumShow is ideal for a wide range of applications, from studio production to field operations, providing a reliable, high-performance solution for video distribution.

주요 이점

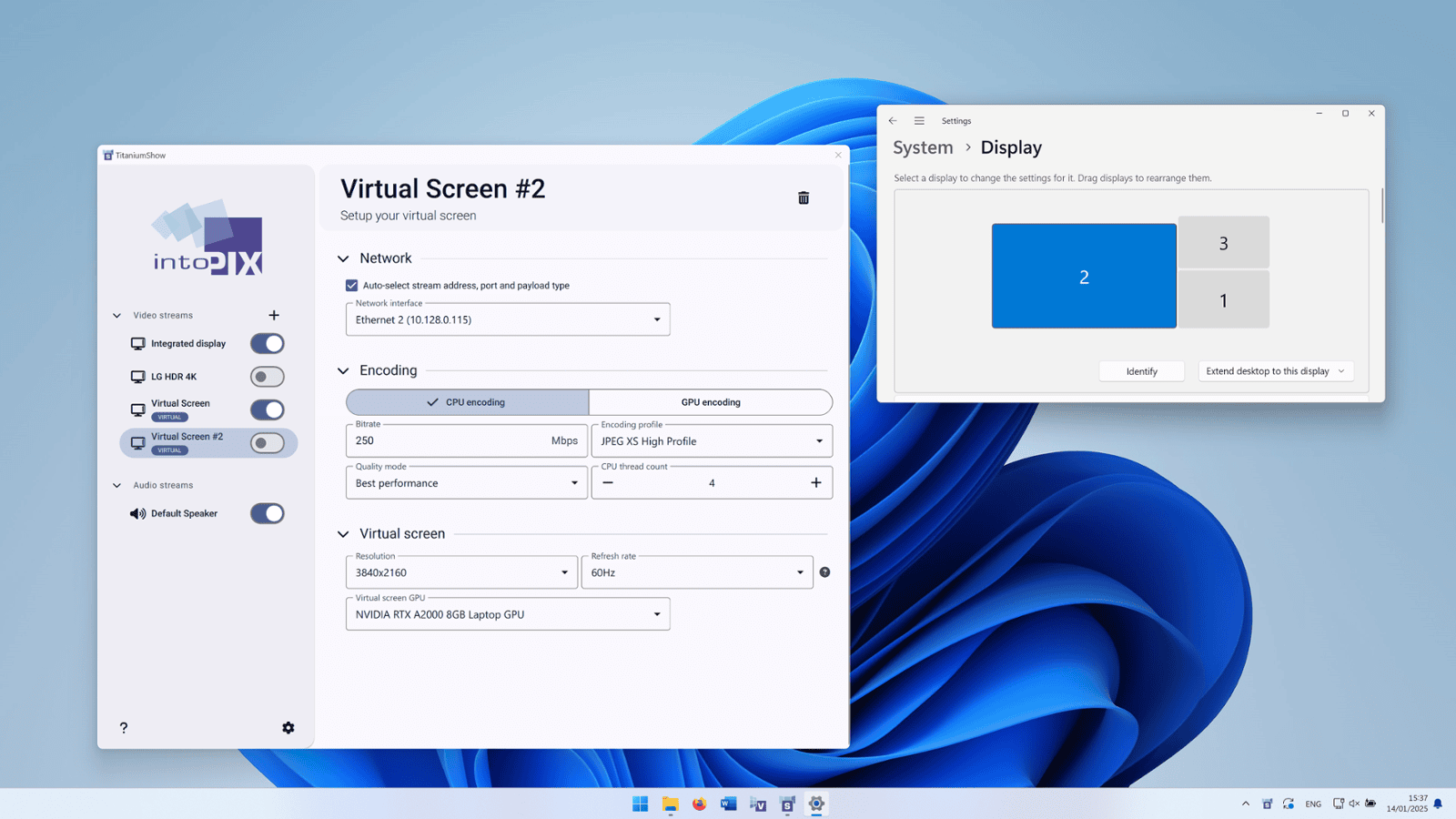

Stream your display or Virtual Screens – in a single click

Capture and stream content from multiple native and virtual screens simultaneously. Generate single or multiple live SMPTE ST 2110 (Wide senders - Type W) and IPMX (VSF TR-10) JPEG XS video sources, with selectable audio options, for a seamless and flexible streaming experience.


Benefit from advanced encoding capabilities, with intoPIX JPEG XS codec, offering CPU encoding and Nvidia GPU encoding for enhanced performance, with support for JPEG XS High & new TDC profiles.

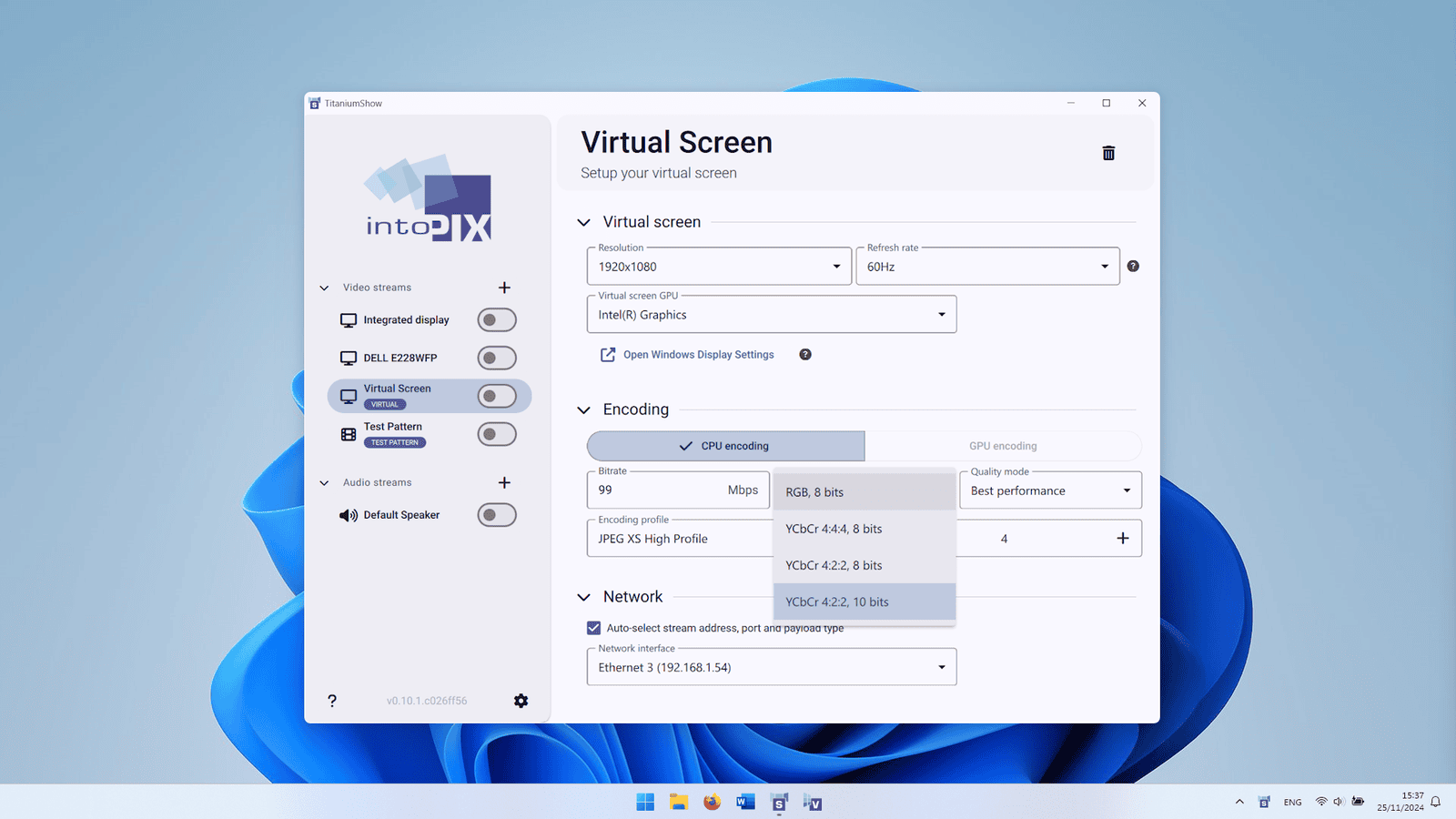

Any Resolution, any format
– Just cast it

Support for any resolutions from 720p, 1080p, 1440p (5K) to 2160p (4K), and custom resolutions in YCbCr / RGB formats, and 4:2:2 / 4:4:4 color subsampling, with 8 / 10-bit depths.


Achieve high performances on common Windows PC with an integrated 1G/2.5Gb Ethernet interface, even when handling large resolutions like multiple HD streams or even 4K.

Generate Audio and Video Test Patterns

Stream audio and JPEG XS video test patterns directly from TitaniumShow. Customize resolutions, video & encoding formats. Integrators and installers can easily setup an IPMX / ST 2110 network and verify video & audio integrity.

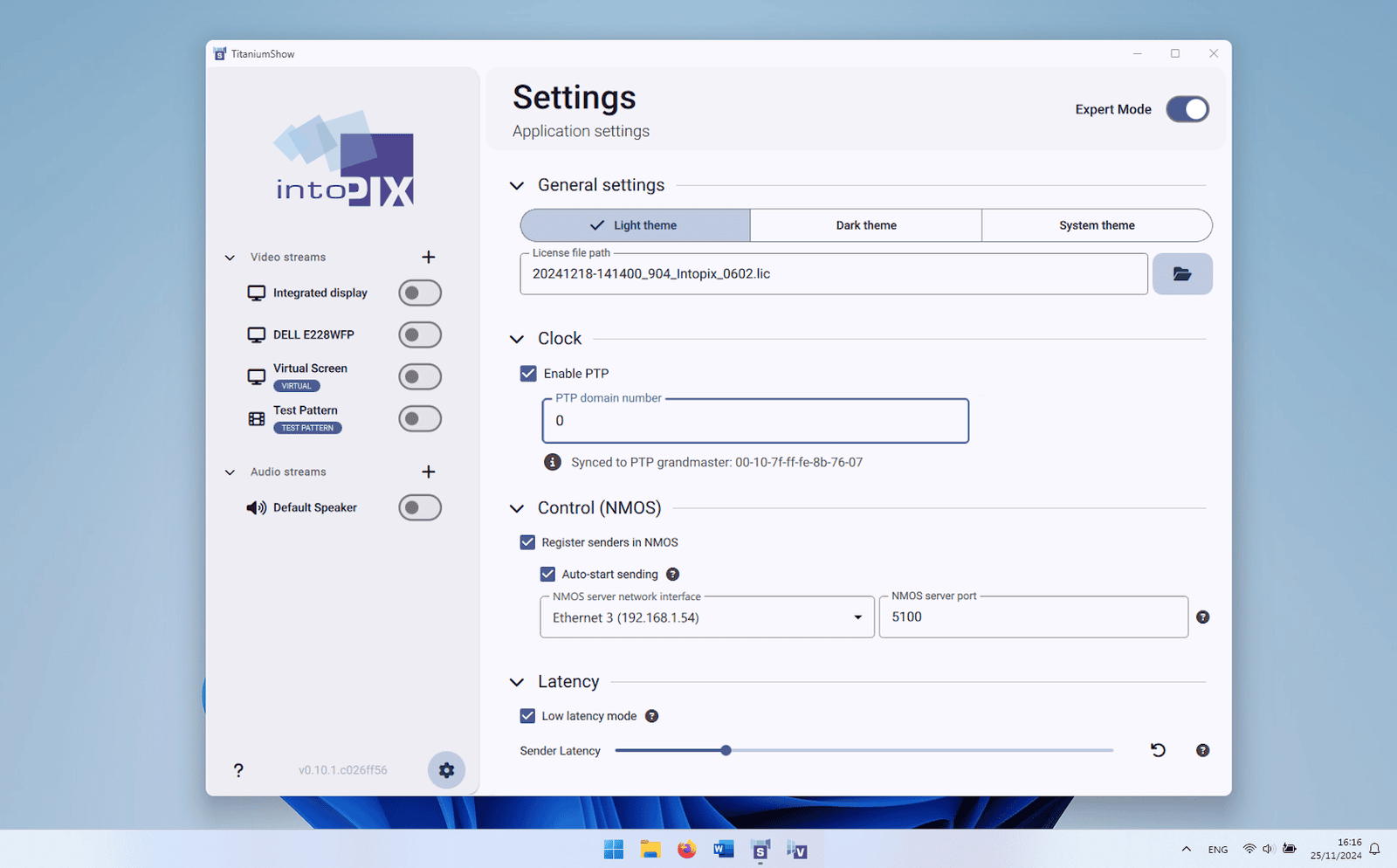

Easy Setup and Control. Plus powerful Options.

Utilize the intuitive UI with embedded NMOS support to create discoverable streams, and manage your network efficiently using any NMOS controller. In custom setups or in non-NMOS environments, export SDPs using files or URLs — without manipulating actual SDP text.

Benefit from an ultra-low latency configuration, ideal for real-time video applications, and maintain perfect synchronization between audio, video, and other network streams with PTP-follower mode support.
  • Comprehensive Screen Capture, Virtual Screen Creation, Test Patterns and Streaming: Capture and stream content from multiple native and virtual screens simultaneously, with the ability to generate test patterns.
    Generate single or multiple live SMPTE ST 2110 (Wide senders - Type W) and IPMX (VSF TR-10) video sources of any sizes, with selectable audio options, for a seamless and flexible streaming experience.
  • Any Resolutions from 720p, 1080p, 1440p (5K) to 2160p (4K), and custom resolutions in YCbCr / RGB formats, and 4:2:2 and 4:4:4 color subsampling, with 8/10-bit depth.
  • High Performance: Operate on a standard Windows PC with an integrated 1G/2.5Gb Ethernet interface, even when handling large resolutions like multiple HD streams or even 4K.
  • Advanced Encoding Capabilities: Powered by the advanced intoPIX JPEG XS codec, offering default CPU encoding and advanced Nvidia GPU encoding for enhanced performance, with JPEG XS High & new TDC profiles.
  • Easy Setup and Control: Utilize the intuitive Show UI with embedded NMOS support to create discoverable streams and manage your network efficiently, with support for SDP files & URLs for custom setups.
  • 초저지연: 매우 짧은 지연 시간으로 실시간 비디오 애플리케이션을 보장합니다.
  • Synchronization: support for PTP-follower mode.
  • 지속적인 지원: 지속적인 개선과 기능 향상을 위한 2년 무료 업데이트의 혜택을 제공합니다.

최소 하드웨어 요구 사항

TitaniumShow를 테스트하고 배포하는 데 필요한 하드웨어는 다음과 같습니다:


IPX-TitaniumShow
  • Cast single to multiple HD screens / test patterns (up to four)
  • Cast a single 4K60 or 5K60 (1440p) screen / test pattern
   Processor
(if CPU-based coding)
 Intel i7 9th generation or better
(GPU-기반 코딩인 경우)
 Intel i5/i7 9th generation or better
with Nvidia GPU GTX 10 or better
메모리8 GB of RAM (Dual-channel memory is preferred)
네트워크 인터페이스표준 유선 1Gb/s
운영 체제Windows 10 이상, 64비트
위의 최소 시스템 사양은 일반적인 동영상 애플리케이션과 함께 Titanium 앱이 제대로 작동하기 위한 요구 사항을 충족합니다.
A more powerful computer may be required if a Titanium App is being used with or alongside other applications requiring significant computing resources.
오늘 Early Access Program에 가입하세요! 그리고 앱을 무료로 사용해 보세요

AV workflows, unlocked in one click

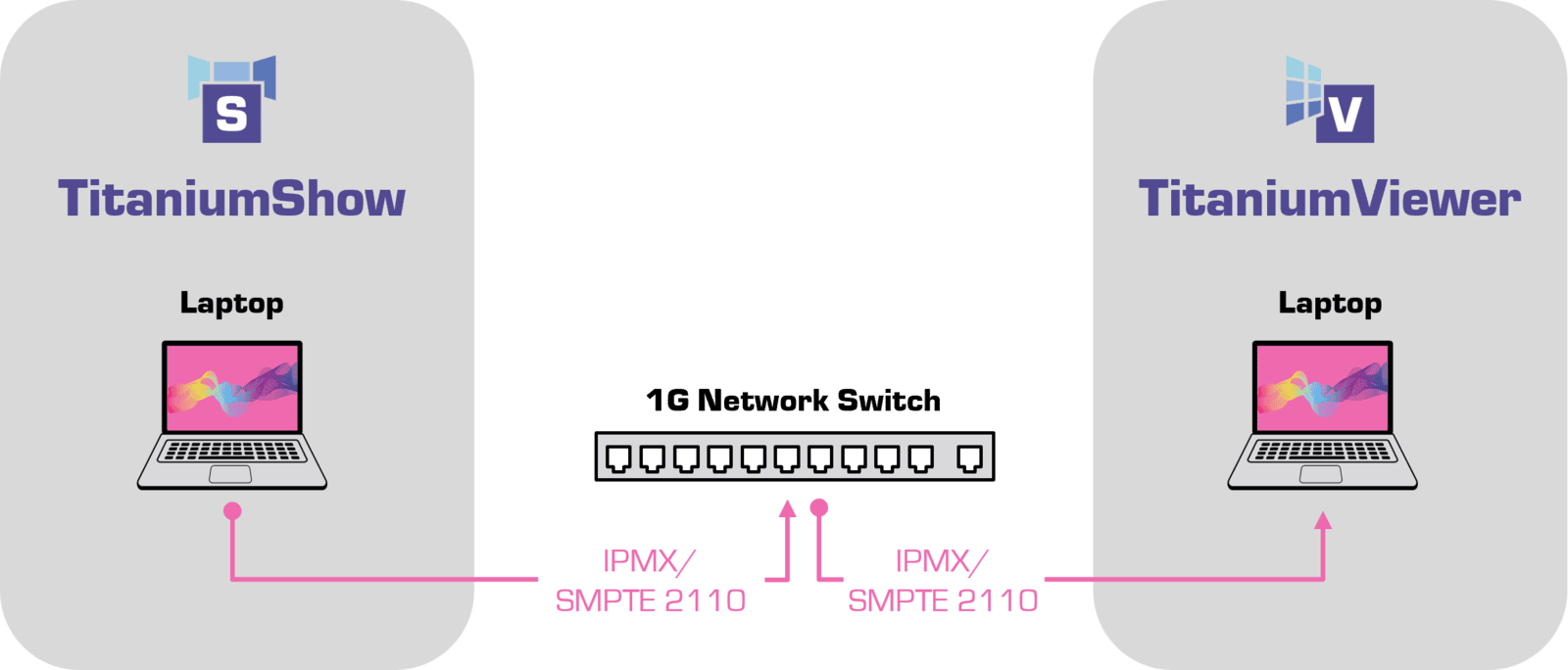

TitaniumShow can be combined with other compatible SMPTE ST 2110 or IPMX video and audio over IP streaming devices, including with intoPIX TitaniumViewer App. Benefit from ultra-low latency and top-tier quality – perfect for live event distribution and production workflows, such as:


    LAN을 통한 저지연 데스크톱 공유
    ​Screen Extension over LAN
​•    LAN을 통한 LED 및 디스플레이 월 프로세싱
    Presenter in Live Events Production

Point-to-point sender for AV workflows

TitaniumShow turns your PC into a SMPTE ST 2110 / IPMX video source for content sharing – such as presentations, media playback or real-time collaboration in NLE projects.

TitaniumShow captures the Windows display output and uses it as video source – or even extends PC capabilities by creating an additional virtual display with custom resolution settings.

TitaniumShow leverages existing standard Cat5e cables and common 1G network switches.

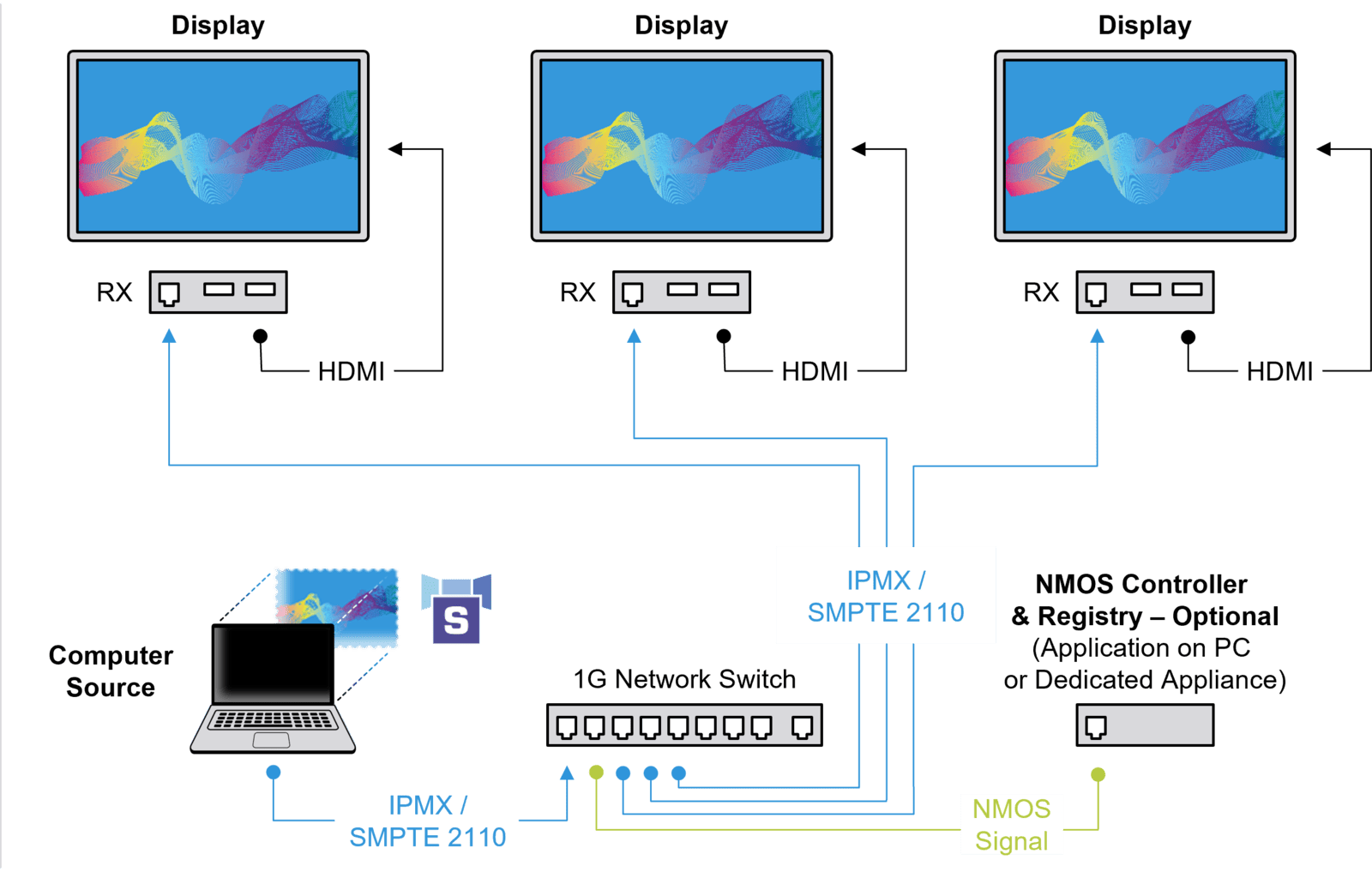

Video distribution over LAN

TitaniumShow turns your PC into a SMPTE ST 2110 / IPMX video source for digital signage and LED wall applications.

Both TitaniumShow and TitaniumViewer integrate perfectly with NMOS controllers and registries for further control and network scalability.

관심이 있으신가요?

Try the apps for yourself via our Early Access Program!

오늘 Early Access Program에 가입하세요! 그리고 앱을 무료로 사용해 보세요
Download the Titanium App Brochure

기능을 놓치셨나요?

저희 제품에 빠진 게 있나요? 여기에 메시지를 남겨서 알려주세요!

Please describe the feature you need. The more details you can share, the better.

기능 요청 보내기
