The smallest ST 2110 / IPMX design for FPGA SoC
— ultra-low-latency video streaming over standard IP
Under 5 ms glass-to-glass. 4K visually lossless on any content. 1 GbE standard Ethernet. A complete embedded development kit for AMD Zynq Ultrascale+ — enabling OEM developers to add ultra-low-latency audio/video streaming over IP to any product, with full SMPTE ST 2110 and IPMX compliance built in from day one.
OPEN PROTOCOLS
RTP - UDP - IP - SDP
PTP IEEE 1588
SMPTE ST 2110
JPEG XS
IPMX / VSF TR-10
NMOS IS-04/05/09/11
AT A GLANCE
LATENCY
VISUALLY
INTEROP TESTED
Any industry. Zero compromise on latency.
Any industry. Zero compromise on latency.
The Titanium FPGA SoC EDK solves one problem: getting high-quality audio and video from A to B over a standard IP network, with the lowest possible latency, on an efficient FPGA SoC implementation. It works with open protocols your network already speaks and it leverages the power of the new JPEG XS standard co-created by intoPIX. And if your market requires SMPTE ST 2110 or IPMX compliance, that's built in too.
WHAT YOU GET
Runs over your existing AMD Zynq GigE port. Even in 4K
RTP over UDP/IP — open and standard
Under 5 ms, end to end
Everything included — your secret sauce stays yours
Robotics & teleoperation
Medical & surgical imaging
Machine Vision
Defense & ISR
Live events
Any 1 GbE network
STANDARD
IPMX / VSF TR-10 — full implementation
Smallest IPMX design on an FPGA SoC
IPMX endpoints
Matrix switchers & extenders
Wall Controllers
Presentation systems
AV-over-IP OEM devices
New to IPMX, or want to understand how it compares to SMPTE ST 2110? Read our IPMX & ST 2110 guide →
STANDARD
SMPTE ST 2110 — full stack on FPGA SoC
Bridge the Studio to Any Network with JPEG XS — including 1 GbE
Studio & PTZ cameras
Portable encoders
Contribution links
Control rooms
라이브 프로덕션
New to SMPTE ST 2110, or want to understand how it compares to IPMX? Read our IPMX & ST 2110 guide →
Standards & compatibility:
2110

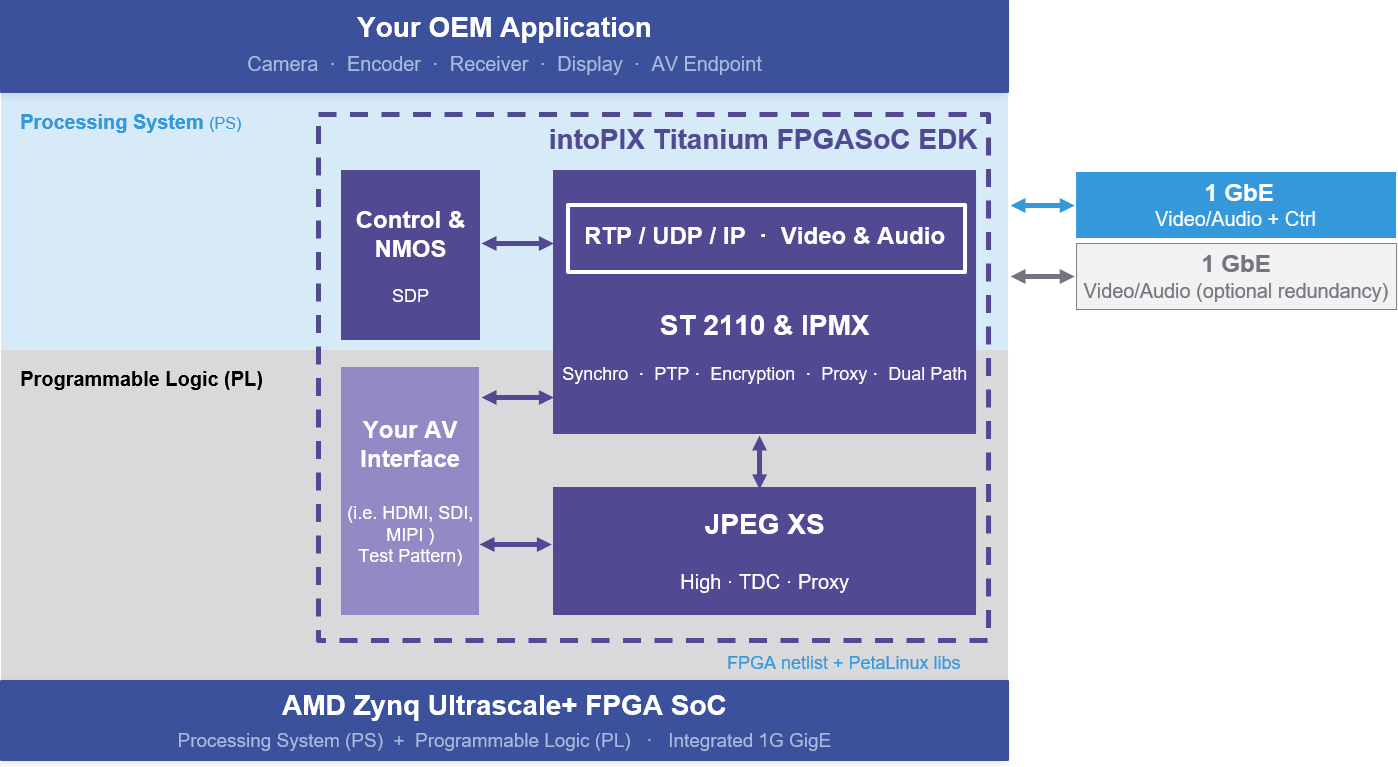

SYSTEM ARCHITECTURE
Inside the Titanium FPGA SoC EDK
FPGA IP cores in the Programmable Logic combined with compiled PetaLinux libraries on the Processing System — delivered as a complete, ready-to-integrate package for AMD Zynq Ultrascale+. Your application and AV interface sit on top, entirely in your control. All running over the AMD Zynq Ultrascale+ integrated 1G GigE port .
AVAILABLE EDK PACKAGES
Choose the right package for your design
Pre-validated packages for AMD Zynq Ultrascale+ — TX (sender/camera) and RX (receiver/display) designs available today, with add-on options for encryption, redundancy, and proxy streams.
4K60 422 AV Sender
Stay Tuned
4K60 FIP 422/444 AV Sender
4K60 FIP 422/444 AV Sender with Proxy
4K60 FIP 4:2:2/4:4:4 Receiver
Stay Tuned
PEP / HKEP Encryption
Frame Buffer / Synchronizer Core
ST 2022-7 Dual-Path Redundancy
Stay Tuned
JPEG XS Proxy 1K Stream
Ask for any custom configurations: small HD logic-optimized variants, specific configurations, and design services. We offer custom packages and design services tailored to your target platform, resolution, and feature set.
TECHNICAL SPECIFICATIONS
Full specification reference
| Standard | SMPTE ST 2110-22 / IPMX |
| Codec | JPEG XS High / TDC, with optional dual-stream: full-resolution + qHD proxy. Customizable bit-rate control and bandwidth optimization |
| 해상도 | 720p · 1080p · 2160p · Custom |
| 프레임 속도 | 24 / 30 / 60 / 120 fps |
| Color | YCbCr 4:2:2 · RGB 4:4:4 |
| 크로마 | 4:2:0 · 4:2:2 · 4:4:4 |
| BIT DEPTH | 8 / 10 / 12-bit |
| Interface | PS Integrated 1G GigE (Single/Dual) |
| Transport | RTP over UDP/IP · Unicast & Multicast · SMPTE 2110 · IPMX (VSF TR10) |
| Synchronous Timing | PTP IEEE 1588 / SMPTE ST 2059 follower |
| Asynchronous Timing | RTCP-based system timing (non-PTP networks) |
| Stream Description and Control Management | SDP (Session Description Protocol) · NMOS, including: IS-04 Discovery & Registration IS-05 Connection Management IS-09 System Parameters IS-11 Stream Compatibility |
| Traffic shaping | SMPTE ST 2110-21 Narrow (N) and Wide (W) |
| Encryption | AES128 Encryption · PEP - VSF TR10-13 & HKEP (option) |
| Redundancy | SMPTE ST 2022-7 seamless dual-path protection -ensures zero packet loss and uninterrupted video, even in the case of network failure. (option) |
| Standard | SMPTE ST 2110-30 / IPMX VSF TR-10-3 / AES67 |
| Channels | 2 to 8 (more channels - optional) |
| 형식 | PCM digital / 24-bit / AES67 |
| Sample rate | 44.1 kHz, 48 kHz, 96 kHz |
| Target SoC | AMD Zynq Ultrascale+ (low FPGA footprint and DDR needs, efficient CPU/ARM usage, and power consumption ) |
| OS | PetaLinux |
| API | C/C++ · GStreamer framework |
| AV interface | AXI-Stream (to interface with HDMI, SDI, MIPI,...) |
| Dev Board | AMD ZCU106 evaluation kit |
Ready to integrate the Titanium FPGA SoC EDK?
Talk to our engineers about your design requirements. We offer custom design services to accelerate your project — from evaluation kit to production.
